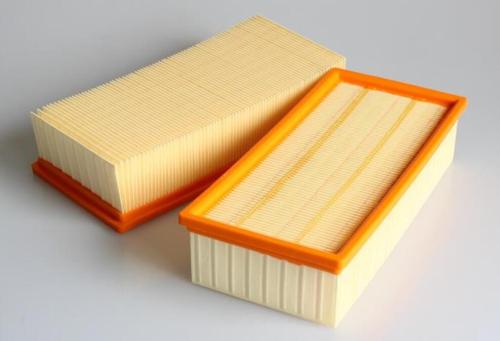

Full-auto Panel Air Filter Paper Pleating Machine

Group Air Filter Production Line
Min. Order 1 set
Terms of Payment all
Update Time 2019-08-06
Quick Detail:

-  PU Air Filter Pleating Machine

-  Rotary Machine

-  350mm Width

-  With Water Steam



Consists

1.  Paper De-coiler

2.  Heater

3.  Water Steam Device

4.  Pleating Machine

5.  Hot-melt Unit

6.  Belt Conveyer

7.  Automatic Counting



Specification

Width90mm-320mm
Pleating Height20-58mm
Speed5-25m/min( adjustable)
Temperature Range0-300℃
Heater Power8.5KW
Transmission Power of Pleater0.75KW
Conveyer Belt Transmission Power0.25kw
Working Air Pressure0.6Mpa
Power Supply380V/50HZ
M/C Weight1100KG
M/C Size7500*950*1750


Feature

1.  Both the work speed of the machine and transmission speed of conveyer belt are controlled by computer, and can be easily adjustable.

2.  Both impression and bubble formation are finished on the identical pairs of rollers with high precision.

3. The temperature can be predetermined in accordance with the requirement of the technological process, when the pleating machine runs and the heater will star to work automatically.

4.  Adopts the water steam device, which is advantageous to prevent the paper from breaking when it is marked by rollers.

5. lt quickly; the glue dispensing quantity can be easily controlled by frequency converter.

6. Pressure control unit in glue feeding circuit to ensure the circuit safety.

7. Both the rubber hose and nozzle are independently temperature controlled.
